Free Shipping DDR4 with Fan Mini PC Support Max 16G RAM 8th Gen CPU Intel Core i7 8550U Mini HTPC Computer i5 8250U Bluetooth PC

Free Shipping DDR4 with Fan Mini PC Support Max 16G RAM 8th Gen CPU Intel Core i7 8550U Mini HTPC Computer i5 8250U Bluetooth PC
  • Продавецoaklandraidersvsbuffalobills.us
  • Список ценUS $253.05piece
  • Продажная ценаUS $253.05piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (808)

Oписание продукта

follow



Firewall



HTB1xHH1dOMnBKNjSZFoq6zOSFXaX



B3B2 i7B13 (2)B11 i7B13 i3 i5I7I2I4I3M1P3N380

Editor Notes



Processor has 2 options suitable for the same motherboard:



1. Kaby Lake R 14nm CPU Intel Core i5 8250U 4 cores 8 threads 1.6Ghz Max to 3.4Ghz 6MB cache TDP 15W Intel UHD Graphic 620.(Sliver Color)



2. Kaby Lake R 14nm CPU Intel Core i7 8550U 4 cores 8 threads 1.8Ghz Max to 4.0Ghz 8MB cache TDP 15W Intel UHD Graphic 620.(Black Color)





How to select Configuration?

For example:
1. You click " No Ram No Storage" from Color and "Intel Core i5 8250U" from Bundle, we will ship the mini pc with processor i5 8250U but no ram no storage included and No O/S to you.
2. You click "8GB Ram 128GB SSD" from Color and "Intel Core i7 8550U" from Bundle, we will ship the mini pc with processor i7 8550U 8GB Ram 128GB SSD and Windows preinstalled to you.

Additional



What\'s in the Box?

1. 1*Mini PC

2. 1* Power Adapter

3. 1* Desk Bracket(Different Model with Different size Bracket)

4. 1* SATA & Data Cables (For 2.5 Inch HDD Installation)

5. 1* 300M Dual Antennas WiFi(Free Gift)

6. 1* Mouse Pad(Free Gift)

7. 1* DVD for Drivers(Free Gift)

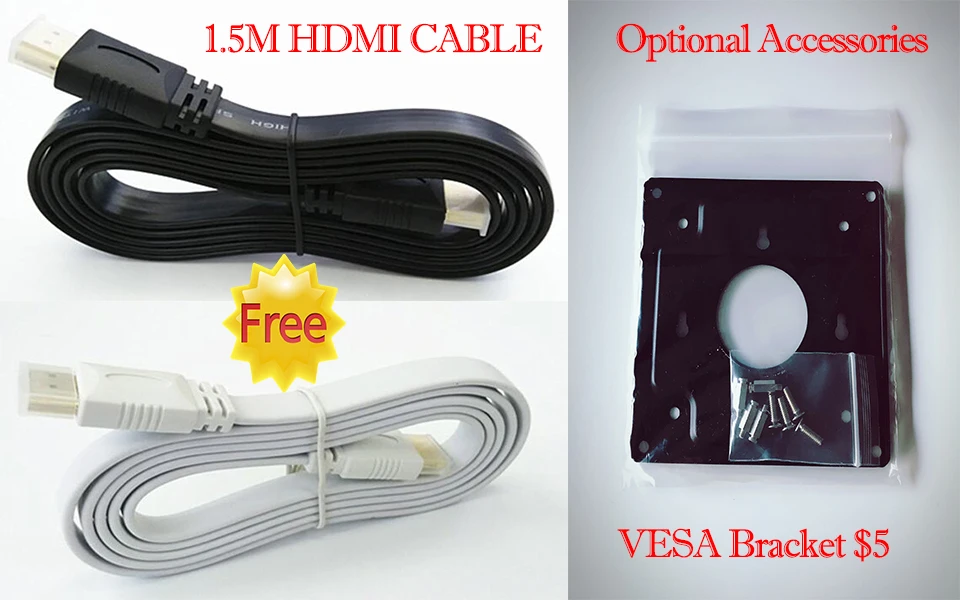

8. 1* 1.5M HDMI Cable(Free Gift)

Optional Accessories

1. 1* VESA Bracket(Optional $5 For B,P Series, not suit for Industrial PC)

2. 2.4G Wireless Touchpad Mini Keyboard(Optional Accessories $19 Only, buy 19 pcs via this link)

3. Normal DVD & USB Bluray DVD(Optional Accessories $28 or $48, buy 28 or 48 pcs via this link)

Freee GiftFreee Gift(2)Freee Gift(3)Freee Gift(4)Attributes


CPU:

Intel Core i5-8250U Processor (6M Cache, 1.6 GHz, Max Turbo Frequency 3.4 GHz), TDP: 15W

Intel UHD Graphics 620, 300MHz~1GHz, Max Resolution (HDMI 1.4) [email protected]

RAM: Support DDR4 , max expanded to 32GB DDR4 SODIMM SDRAM Notebook memory;

Storage: Max expanded to 1*mSATA3 SSD and 1*2.5 inch laptop HDD/SSD SATA3, 1*NGFF 2280 M.2 SSD, no limited on storage capacity;

Operating System:  Default: Windows 10 Pro ; Optional: Linux Ubuntu

Wireless: 300MB WiFi with 2 Antennas

I/O:

4*USB2.0, 4*USB3.0, 1*HDMI, 1*VGA, 1*LAN Gigabit (RJ45), 1*MIC, 1*SPK;

Internal ports: 1*mSATA3.0, support 6Gb/s, 1*SATA3.0, support 6Gb/s, 1*mini-PCIE port (for WIFI);

HD Out put: HDMI+VGA, support HDMI to DVI and HDMI to VGA

LAN port: 1*Gigabit RJ45 port speed up to 1Gbps;

Case Material: Brushed Aluminum Alloy;


Processor:

CPU: Intel Core i7-8550U Processor (8MB Cache, 1.8GHz, Max Turbo Frequency 4.0 GHz)

Graphics: Intel UHD Graphics 620 , support Ultra 4K HD Resolution  4096x230

RAM: Support DDR4; max expanded to 32GB SODIMM Notebook memory;

Storage: max expanded to 1*mSATA3 SSD and 1*2.5 inch laptop SSD/HDD SATA3, no limited on storage capacity;

Operating System: Default: Windows 10 Pro; Optional: Linux Ubuntu

Wireless: 300MB WiFi with 2 Antennas

I/O:

1*HDMI, 1*DP,  1*LAN Gigabit (RJ45),  4*USB 3.0,  1*USB2.0,  1*SD Card Slot,  1*Power indicator and switch, 1*MIC, 1*SPK;  1*DC IN ;
Internal ports: 1*mSATA3.0, support 6Gb/s, 1*SATA3.0, support 6Gb/s, 1*mini-PCIE port (for WIFI);

HD Out put: 1*HDMI+1*DP, support DP/HDMI to DVI and DP/HDMI to VGA

LAN port: 1*Gigabit RJ45 port speed up to 1Gbps;

Case Material: Brushed Aluminum Alloy;




Free Operating System: Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc.  Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.


system



Description



Processor

Intel® Core™ i5-8250U Processor

Intel® Core™ i7-8550U Processor

Quad Core Eight Threads

Base Frequency 1.6GHz, Max Turbo Frequency 3.4GHz

Base Frequency 1.8GHz, Max Turbo Frequency 4.0GHz

14nm Lithography
Intel KABY LAKE SOC Chipset
6MB L3 Cache
15W TDP
Multimedia Instruction Set: 64-bit; MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, AVX
Processor GraphicsIntel® UHD Graphics 620
Graphics Base Frequency 300.00 MHz
Graphics Burst Frequency 1.00 GHz
Graphics Video Max Memory 32 GB
Max Resolution (HDMI 1.4): [email protected]
BIOSAMI BIOS, ACPI supported
RAMDDR4; 4GB/8GB/16GB/32GB optional, 2*DDR4 SO-DIMM Slot
StorageSSD: 64GB/128GB/256GB/512GB available;  HDD: 500GB/1TB available
Operating SystemDefault: Windows 10 Pro; Optional: Linux Ubuntu (Windows 7/8 not supported)
Audio CardALC892 sound chip, 6-channel
Network CardRTL 8111E 10/100/1000 BaseT LAN
WirelessWifi 802.11.b/g/n, 300M, Dual Antennas; Bluetooth 3.0 optional
I/O Port1*HDMI, 1*VGA, 1*RJ45 LAN Port, 4*USB3.0, 4*USB2.0, 1*DC IN, 1*MIC, 1*SPK
SATA1*mSATA3.0 Slot, 6Gb/s; 1*SATA3 Connector, 6Gb/s,1*NGFF 2280 M.2 SSD
MINI PCIE1* MINI PCIE Slot for Wifi Module
PowerIn: DC100-240V AC/50-60Hz Out: DC 12V/3A/5A
Operating Temperature0°C~70°C (32°F~140°F)
Storage Temperature-20°C~80°C (-68°F~176°F)
Relative Humidity10%~90% (non-condensing)
Size205mmx 180mmx45mm
Package ContentMini PC, Power adapter, Power Cable, Wifi Antennas, Stand Bracket, Screws
